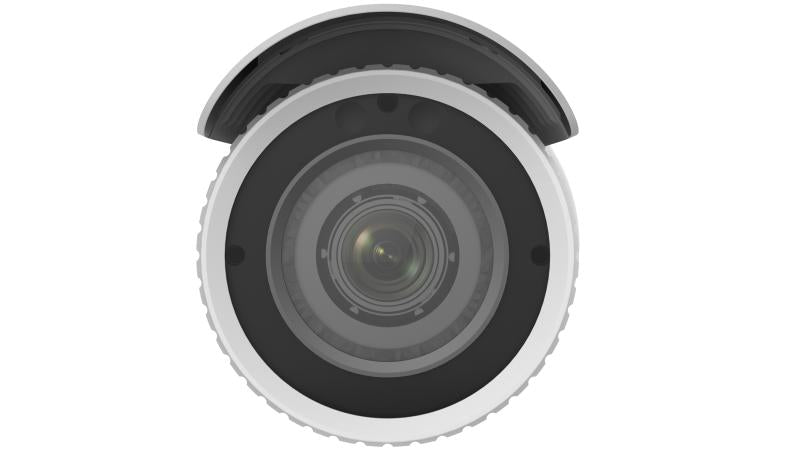

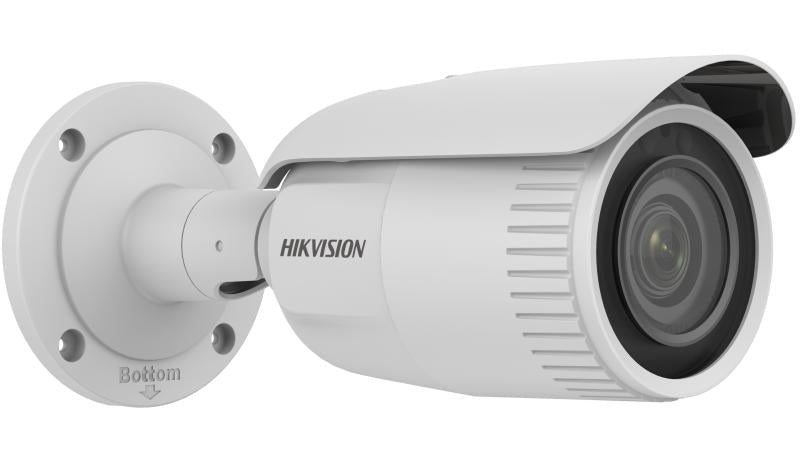

4 MP Varifocal Bullet Network Camera _ DS-2CD1643G0-I(Z)

High quality imaging with 4 MP resolution

Efficient H.265+ compression technology

Clear imaging even with strong back lighting due to 120 dB WDR

Up to 256 GB SD card slot for storage

2.8 to 12 mm motorized varifocal lens for easy installation and monitoring

Water and dust resistant (IP67)

EXIR 2.0: advanced infrared technology with long IR range

Camera

Image Sensor1/3" Progressive Scan CMOS

Max. Resolution2560 × 1440

Min. Illumination Colour : 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed1/3 s to 1/100,000 s

Wide Dynamic Range120 dB

Day & Night

IR Cut Filter

Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Lens

Lens Type

Varifocal lens, motor-driven lens, 2.8 to 12 mm

Iris Type Fixed

ApertureF1.6

Illuminator

IR Wavelength850 nm

IR Range

Up to 50 m

Video

Main Stream

50 Hz: 20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440)

30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 8 Mbps

H.264 Type Baseline Profile/Main Profile/High Profile

H.265 Type Main Profile

Region of Interest (ROI)1 fixed region for main stream

Audio

Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Audio Sampling Rate-S: 8 kHz/16 kHz

Environment Noise Filtering-S: Yes

Network

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View Up to 6 channels

API Open Network Video Interface, ISAPI

User/Host Up to 32 users. 3 levels: administrator, operator and user

ClientiVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+


Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, Schedule, Day, Night
