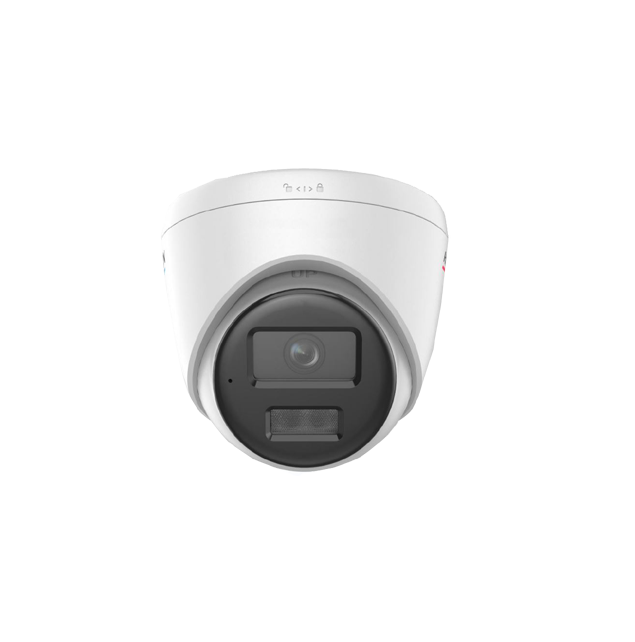

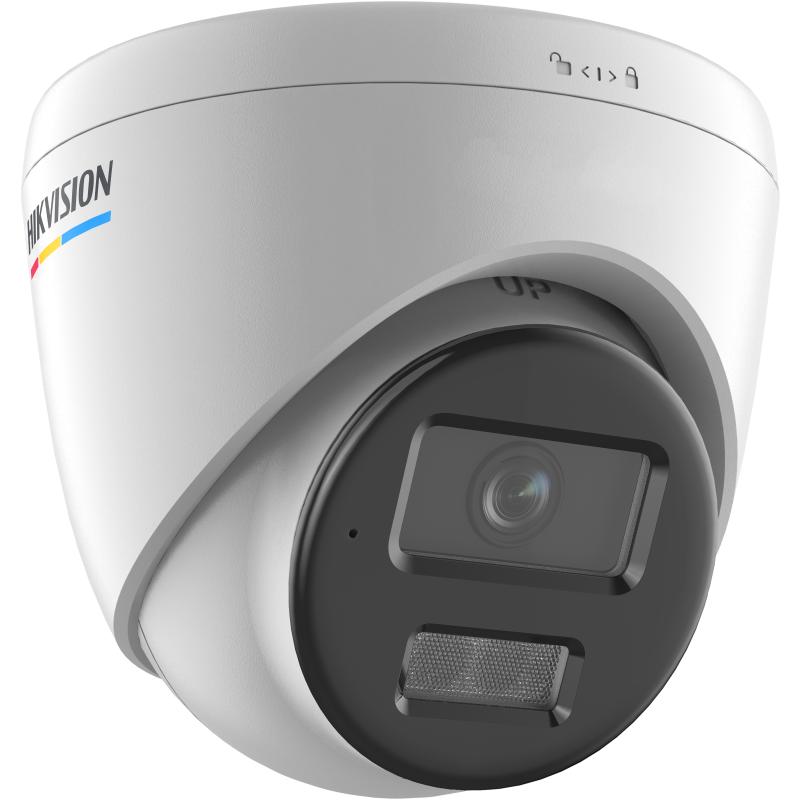

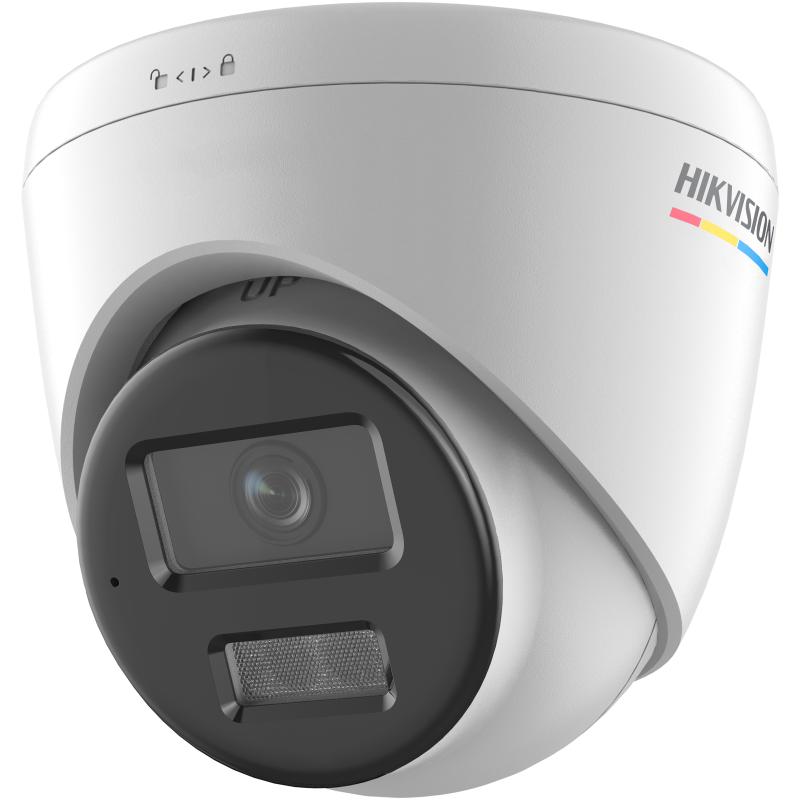

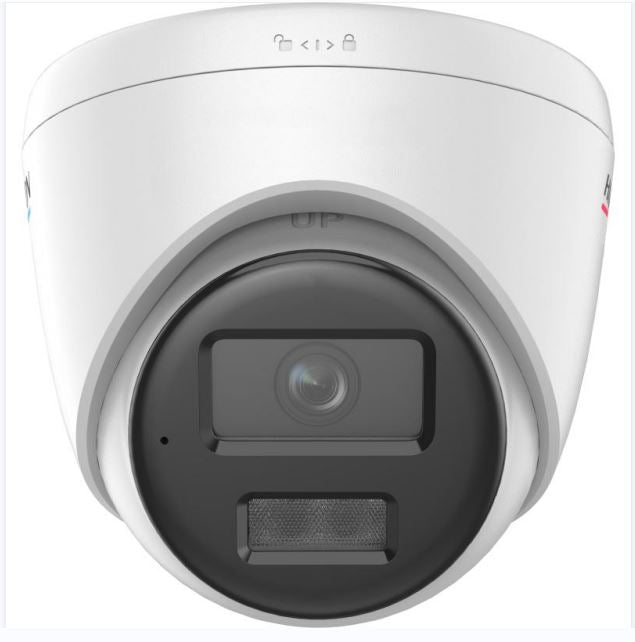

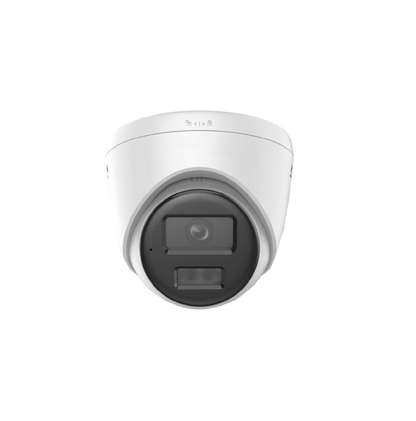

4 MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera _ DS-2CD1347G2H-LIU(F)

High quality imaging with 4 MP resolution

Support Human and Vehicle Detection

Smart Hybrid Light: advanced technology with long range

Efficient H.265+ compression technology

Support on-board storage up to 512 GB (SD card slot) (Optional)

Built-in microphone for real-time audio security

Water and dust resistant (IP67)

Camera

Image Sensor1/3" Progressive Scan CMOS

Max. Resolution2560 × 1440

Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time1/3 s to 1/100,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

Lens Type Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°

4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93°

Lens MountM12

Iris Type Fixed

ApertureF1.0

DORI

DORI

2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type IR, White Light

Supplement Light Range Up to 30 m

Smart Supplement Light Yes

IR Wavelength850 nm

Video

Main Stream

50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 8 Mbps

H.264 Type Baseline Profile, Main Profile, High Profile

H.265 Type Main Profile

Bit Rate Control CBR,VBR

Region of Interest (ROI)1 fixed region for main stream

Scalable Video Coding (SVC)H.264 and H.265 encoding

Audio

Audio Type Mono sound

Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate8 kHz/16 kHz

Environment Noise Filtering Yes

Network

Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, UDP, QoS, FTP, SMTP

Simultaneous Live View Up to 6 channels

API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK

Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

ClientiVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
