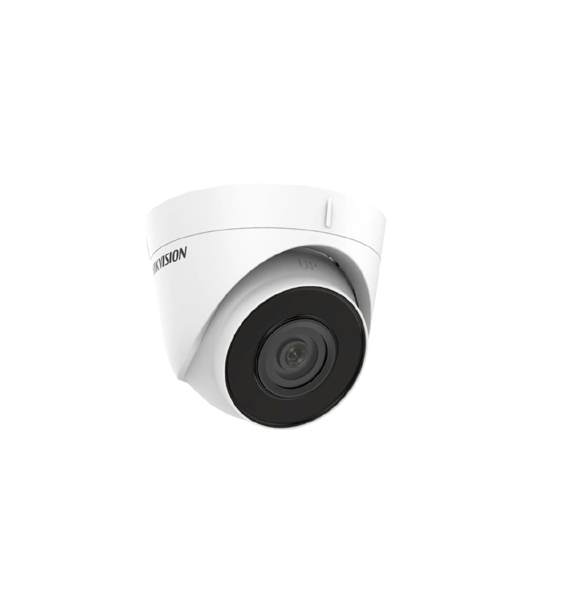

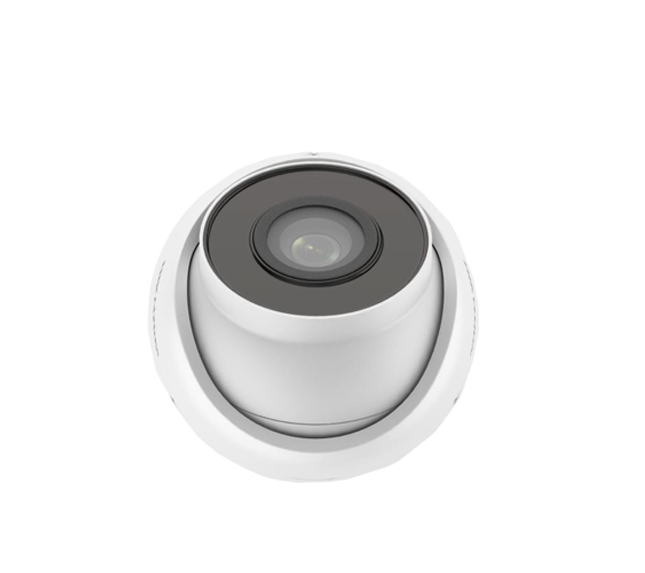

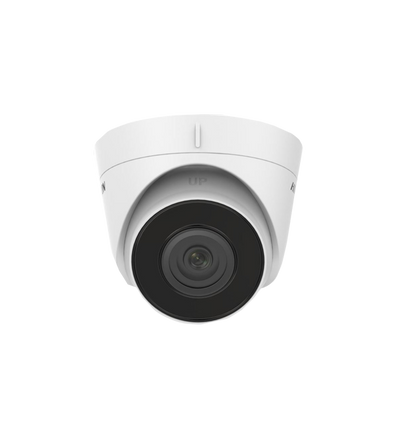

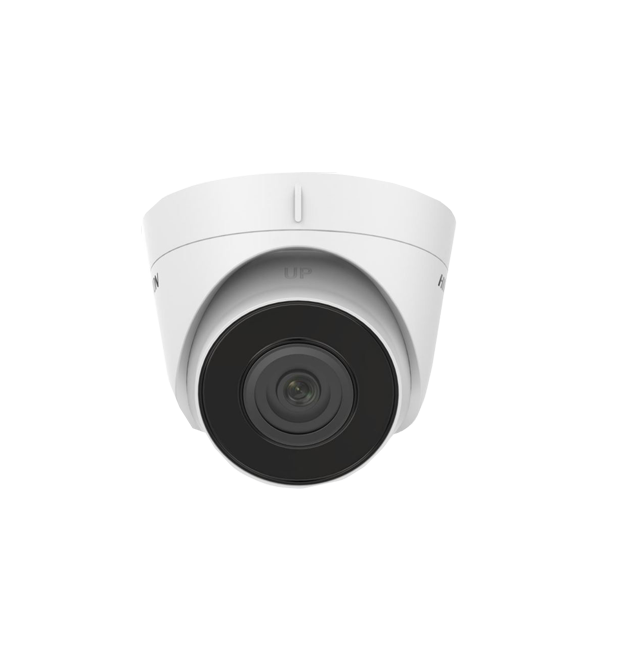

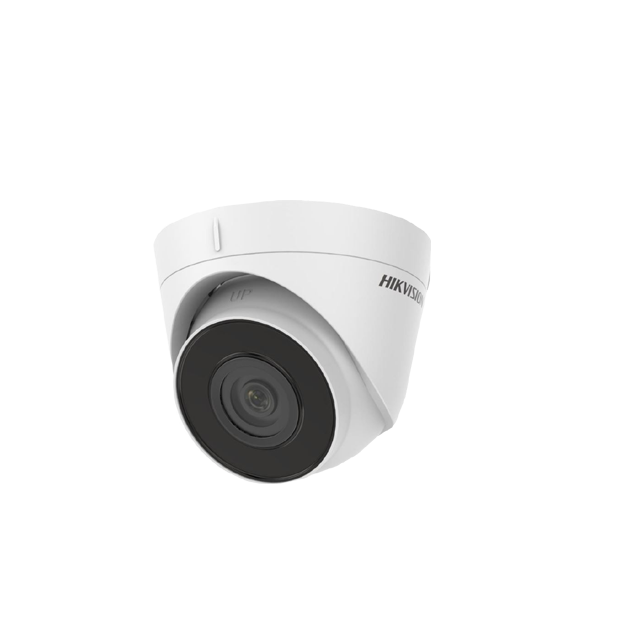

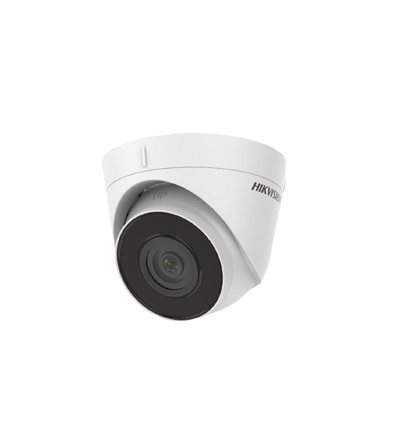

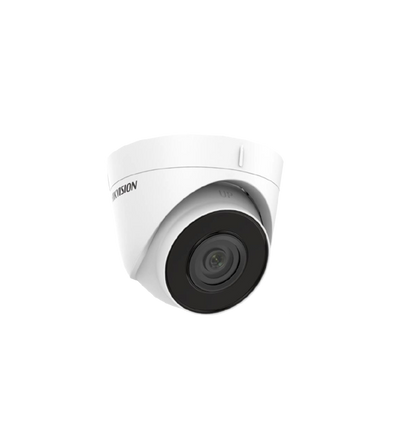

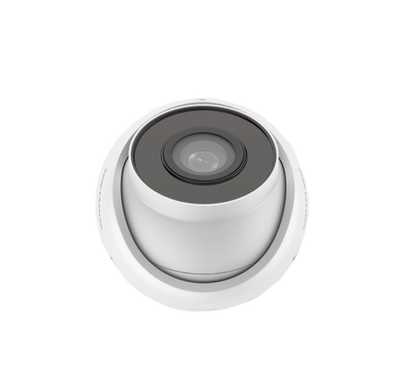

2 MP Build-in Mic Fixed Turret Network Camera _ DS-2CD1323G0-IUF

High quality imaging with 2 MP resolution

Efficient H.265+ compression technology

Clear imaging against strong back light due to DWDR technology

Water and dust resistant (IP67)

EXIR 2.0: advanced infrared technology with long IR range

Built-in microphone for real-time audio security

Support up to 256 GB SD card storage

Camera

Image Sensor1/2.7" Progressive Scan CMOS

Max. Resolution1920 × 1080

Min. Illumination Colour: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Time1/3 s to 1/100, 000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Focal Length & FOV

2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°

4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°

Lens MountM12

Iris Type Fixed

ApertureF2.0

Illuminator

Supplement Light Type IR

Supplement Light Range Up to 30 m

Smart Supplement Light Yes

IR Wavelength850 nm

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main Stream: H.265/H.264/H.264+/H.265+

Sub-Stream: H.265/H.264/MJPEG

Video Bit Rate 32 Kbps to 8 Mbps

H.264 Type Base line Profile/Main Profile/High Profile

H.265 Type Main Profile

Region of Interest (ROI)1 fixed region for main stream

Audio

Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Audio Sampling Rate8 kHz/16 kHz

Environment Noise Filtering Yes

Network

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View Up to 6 channels

API Open Network Video Interface, ISAPI

User/Host Up to 32 users. 3 levels: administrator, operator and user

Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage

ClientiVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+


Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.

Day/Night Switch Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)Digital WDR

SNR≥ 52 dB

Image Enhancement BLC, 3D DNR
